Celestron NexStar Evolution 6 Overview Research

Written by Astrosyo

Introduction

The Celestron NexStar Evolution 6 is often described as more of a high-tech mount than a powerhouse optical instrument. While the 6” Schmidt-Cassegrain optical tube is competent, the value of this package lies primarily in its computerized tracking, built-in WiFi, and rechargeable battery. In terms of raw aperture, comparable performance can be found in far less expensive reflectors—but the Evolution series offers portability and modern features that those scopes lack.

Optics

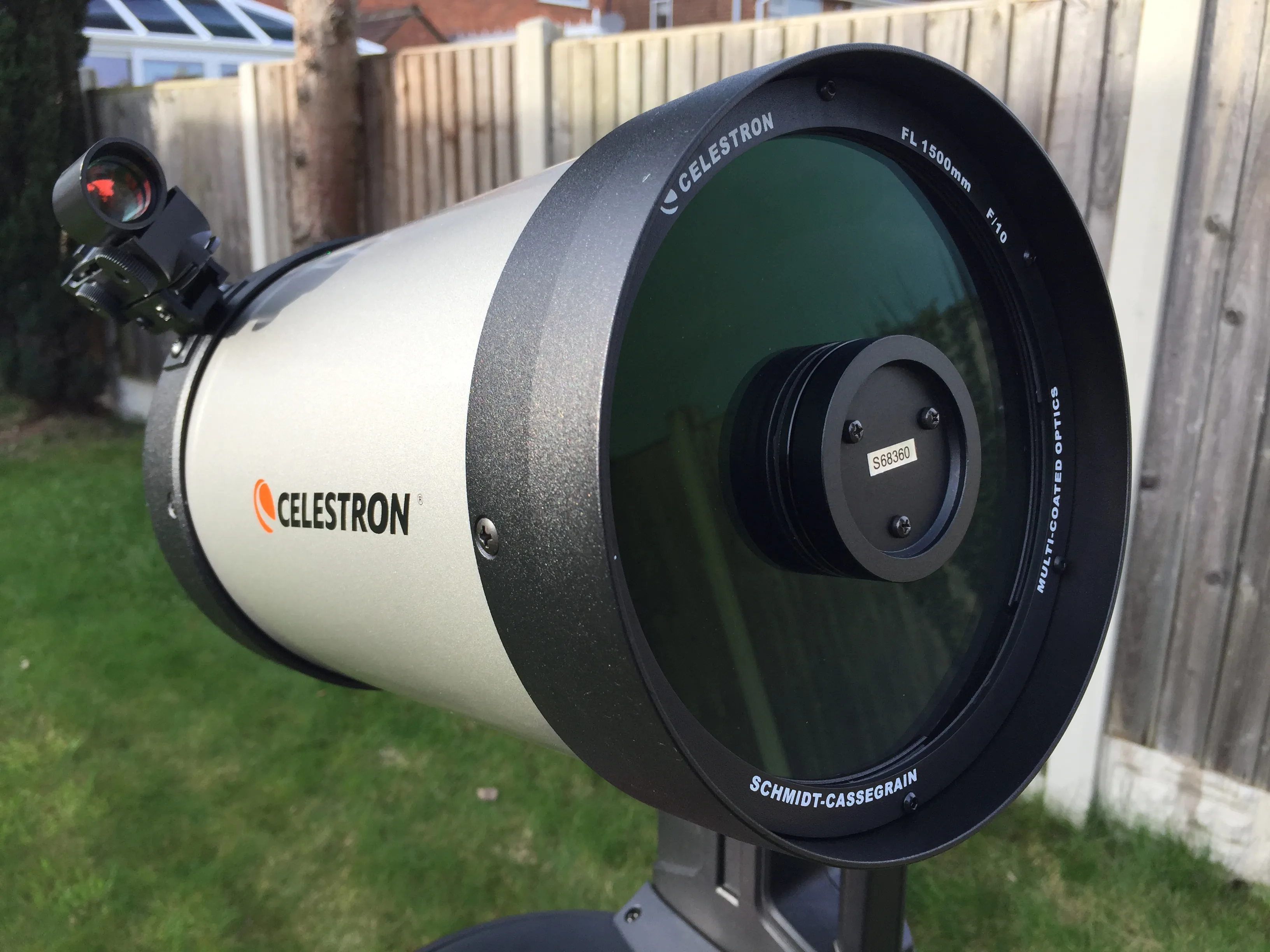

The Evolution 6 uses a 6” (150mm) f/10 Schmidt-Cassegrain optical design. This aperture is adequate for planetary and lunar work, but relatively modest for deep-sky observing at its price point. An 8” SCT gathers about 77% more light, while a 10” gathers nearly three times as much, which demonstrates the limits of this model’s 6” aperture. On the positive side, the SCT design minimizes common issues like diffraction spikes and chromatic aberration found in other optical types.

Planetary & Lunar Performance

Reports from users consistently highlight the Evolution 6 as a strong performer on Solar System objects. Jupiter reveals its cloud belts and Great Red Spot, Saturn’s rings and Cassini Division are readily visible, and Mars shows polar caps and some surface shading during favorable oppositions. The Moon is particularly impressive, with sharp crater detail and good color fidelity. Uranus and Neptune appear as small disks with Uranus’ moons and Neptune’s Triton visible under dark skies.

Deep-Sky Performance

Out of the box, the Evolution 6 is less ideal for wide-field deep-sky viewing due to its long focal ratio (f/10) and narrow field of view. A focal reducer (bringing it down to ~f/6.3) significantly improves usability for galaxies and nebulae. A 2” star diagonal with wide-field eyepieces also helps, though these accessories add considerable cost. Even with these upgrades, its performance will remain below larger reflectors at the same price.

Astrophotography

Serious astrophotography is possible but requires workarounds. The alt-az mount limits exposures to about 1–2 minutes before field rotation becomes an issue, which is fine for planetary and lunar imaging but restrictive for deep-sky. Solutions include Celestron’s equatorial wedge for long exposures, or advanced setups like Starizona’s HyperStar (f/2 conversion), which enables extremely short exposure times. For a full astrophotography path, however, many users opt for a dedicated equatorial mount.

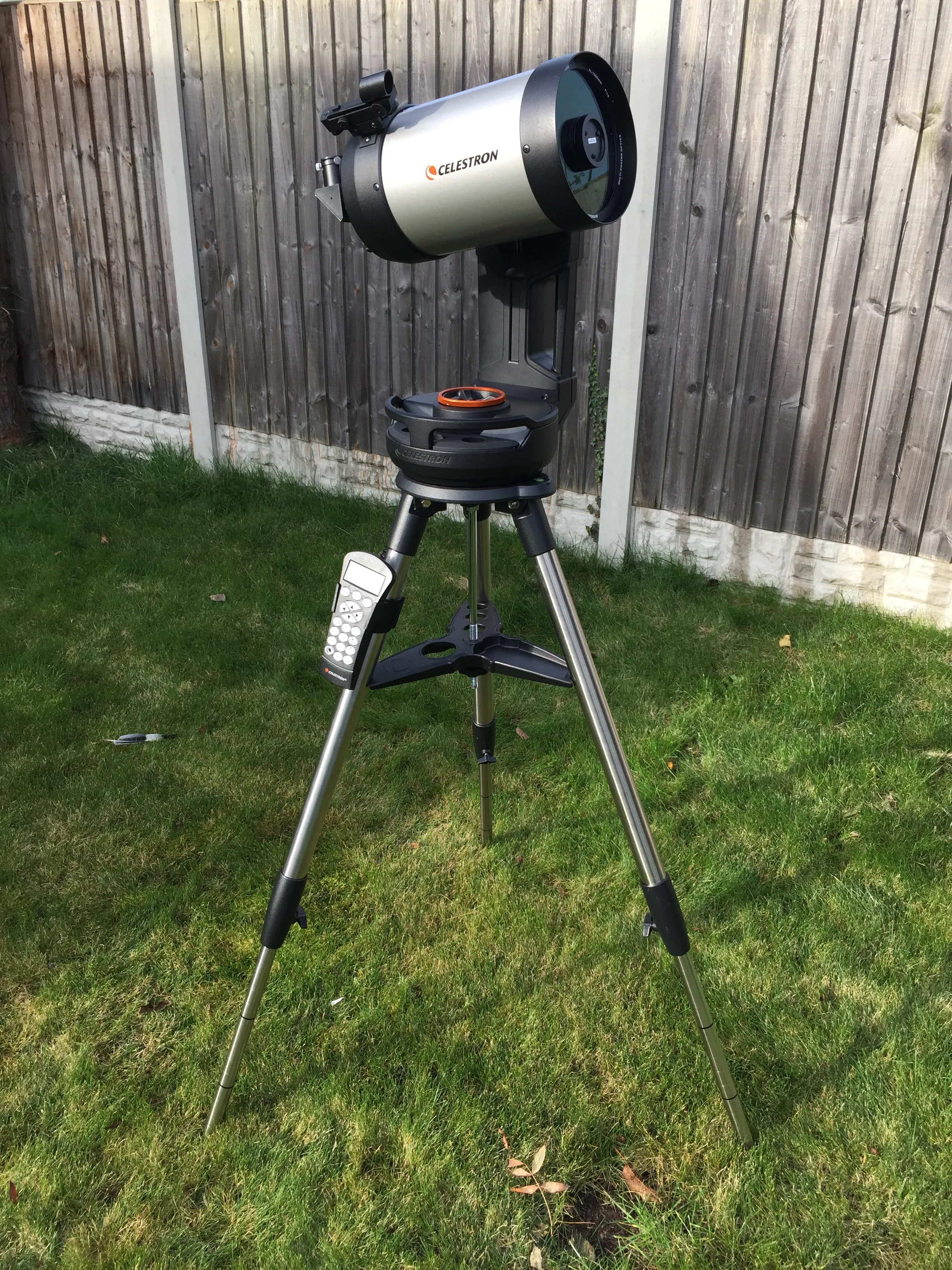

Mount & Electronics

The Evolution mount is one of the best features of the package. It features precision metal gears, strong clutches, and manual usability without losing alignment. The built-in WiFi and rechargeable battery (around 10 hours per charge) add real convenience, though the SkyPortal app can be buggy at times. Many owners report that firmware updates have improved reliability over the years.

Accessories

The included 13mm and 40mm Plössl eyepieces, 1.25″ diagonal, and red-dot finder are functional but unimpressive. Upgrading to a 2” diagonal, higher-quality eyepieces, and a better finder is recommended for getting the most out of this scope.

Drawbacks

The main limitation is the small aperture relative to the cost. While the mount technology is excellent, you are paying a premium for electronics rather than optical power. Deep-sky observing and astrophotography require additional investment in accessories and upgrades, and the bundled app experience is not always stable.

Conclusion

The Celestron NexStar Evolution 6 is best suited for those who value convenience and modern features over sheer aperture. Its mount, WiFi connectivity, and built-in battery are excellent, and it delivers enjoyable planetary and lunar views. However, for those focused on deep-sky observing or maximizing optical performance per dollar, larger reflectors or SCTs may represent better value. The Evolution 6 is a balanced choice for urban and suburban observers who want an easy-to-use, technologically advanced telescope with modest optical capability.
